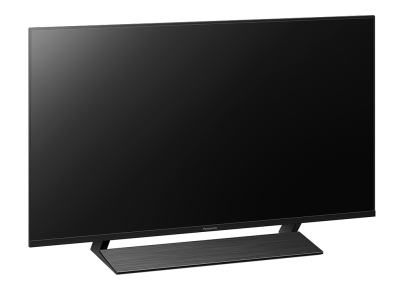

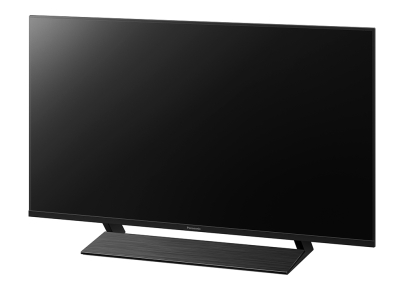

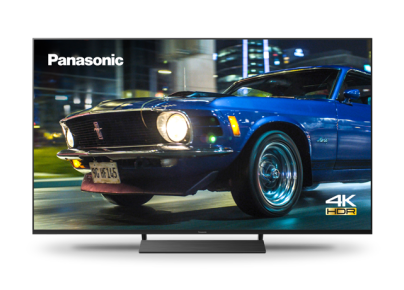

Panasoinc TX-40HX800B
Picture Tuned in Hollywood
HCX Processor
HDR10+ / Dolby Vision
Dolby Atmos
HDR Bright Panel Plus
Our high performance 4K HDR TVs are tuned by a world-renowned colourist, who works for Hollywood’s leading film studios. Using his highly experienced eye, he has adjusted the colour, brightness and contrast to ensure these TVs deliver a picture faithful to the original.
The Studio Colour HCX Processor creates a true Hollywood Cinema eXperience with greater picture realism. Using a 3D Look-Up Table, HDR and 4K Remaster technology for colour accuracy and picture quality true to the filmmaker’s vision.
Our TVs deliver the highest quality images from UHD Blu-ray™ discs and video streaming services that support HDR10+ and Dolby Vision™. By using Dynamic Metadata, the picture’s HDR settings are optimised scene-by-scene. As our premium TVs support all HDR formats, your favourite content will always look its best.
With new support for state-of-the-art audio formats Dolby Atmos, the sound pours in from all directions, including overhead. Powerful, dynamic sound travels in 3D space to bring you inside an immersive cinematic experience.
Ideal for rooms with lots of natural light. HDR Bright Panel Plus produces sharp, crisp HDR images with spectacular highlights - even on the brightest of days. This is thanks to an efficient screen that allows plenty of light through.
Display
Panel 4K ULTRA HD / HDR Bright Panel Plus
Screen Resolution 3,840 (W) x 2,160 (H)
Panel Drive 4K 1600 Hz BMR IFC
Picture Mode Dynamic/Normal/Cinema/True Cinema/Custom/Sport/Game/DolbyVision (Vivid/Bright/Dark)
Ultra HD Premium*1 —
Multi HDR Support*2 HDR10+/HDR10/HLG/DolbyVision/HLG Photo*16
Dolby Vision IQ —
Filmmaker Mode —
HDR Brightness Enhancer Y
Dynamic HDR Effect Y
Contrast Brilliant Contrast
Colour Space Wide Colour Spectrum
Advanced Video Processor/Engine HCX Processor
Local Dimming Y
Adaptive Backlight Dimming —
isf Mode —
SoundQuality
Dolby Atmos Y
Surround Cinema Surround
Speaker Output 20 W (10 W x 2)
Sound Mode Standard/Music/Speech/Stadium/User
SmartFeatures
Smart TV my Home Screen5.0
Works with Google Assistant*3 Y
Works with Alexa*4 Y
Voice Guidance Y
EPG Y
On Screen Display Menu Languages English
Digital TV DVB-T/T2
Twin Tuner —
FreeView Y w/ Quick look guide
Wireless LAN Built-in Y
TV Anywhere*5 Y
In-House TV Streaming (DVB-IP) —
PanasonicTVRemoteApps
Panasonic TV Remote Apps Y
Swipe & Share Y
Web Browser*6 Y
Mirroring Y (Easy Mirroring)
Home Network*7 Y (Server / Client)
Bluetooth*8 Y HID / HOGP (Keyboard/Mouse) A2DP (Audio In/Out)
Bluetooth Audio Link*9 Y
IP Home Control Y
MediaPlayer
Media Player Y (2.0)*17
Support Format AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG/HLG Photo
Data Broadcasting SD-MHEG
Teletext Reception 1000P
USB-HDD Recording*10 Y (w/ Rewind live TV)
Multi Window PAT
HDAVI Control Y
EnergyData
Suppliers Trademark Panasonic
Model ID TX-40HX800B
Energy Efficiency Class A+
Visible Screen Size (diagonal) 100 cm / 40 inches
On mode Average Power Consumption*11 48W
Annual Energy Consumption*12 67kWh/Y
Standby Power Consumption 0.5W
Off mode Power Consumption 0.3W
Screen Resolution 3,840 (W) x 2,160 (H)
Power Supply AC 220 - 240 V, 50/60 Hz
Rated Power Consumption 90W
Ambient Sensor (CATS) Y
Design
Swivel Design —
Switch Design —
Terminal
Digital Tuner Reception DVB-T/T2
Analogue Tuner Y
HDMI13
HDMI 2 (side), 1 (rear)
HDMI (4K 60/50p with HDCP2.2) 3
Support Feature Audio Return Channel (Input 2) HDMI2.1 Auto low Latency mode
USB 2 (1 side, 1 rear; USB 3.0 x 1, USB 2.0 x 1)
Ethernet 1
CI (Common Interface) 1 (CI Plus, Version 1.4, ECP)
Scart Connector —
Analogue Video Input RCA phono type x 1 (rear)
Component Video Input shared with Composite RCA phono type x 1 (rear)
Digital Audio Output (Optical) 1 (rear)
Digital Audio Output (Coax) —
PC input (VGA) + PC Audio In —
Headphone Output 1 (side; switchable to Subwoofer)
General
Included Accessory*14 TV Remote
Dimensions (W x H x D) (w/o stand) 901 x 517 x 63mm
Dimensions (W x H x D) (with stand)*15 901 x 574 x 236mm
Weight (w/o stand) 11.0kg
Weight (with stand) 13.0kg
Dimension Pedestal (W x D) 529 x 236 mm
VESA Compatible Y
VESA Dimension (W x H) 200 x 200 mm
Outer Boxed Unit (W x H x D) 1010 x 661 x 149mm
Total Boxed Weight 15kg
